CNC Machined Brass Flange Fitting

Product Presentation

This brass flange fitting is precision CNC turned from free-cutting brass, featuring a male thread, hex wrenching body and integrated sealing flange. It offers excellent machinability, good corrosion resistance and reliable sealing performance, widely used in plumbing, pneumatic and fluid connection systems.

CNC Machined Brass Flange Fitting - view 1

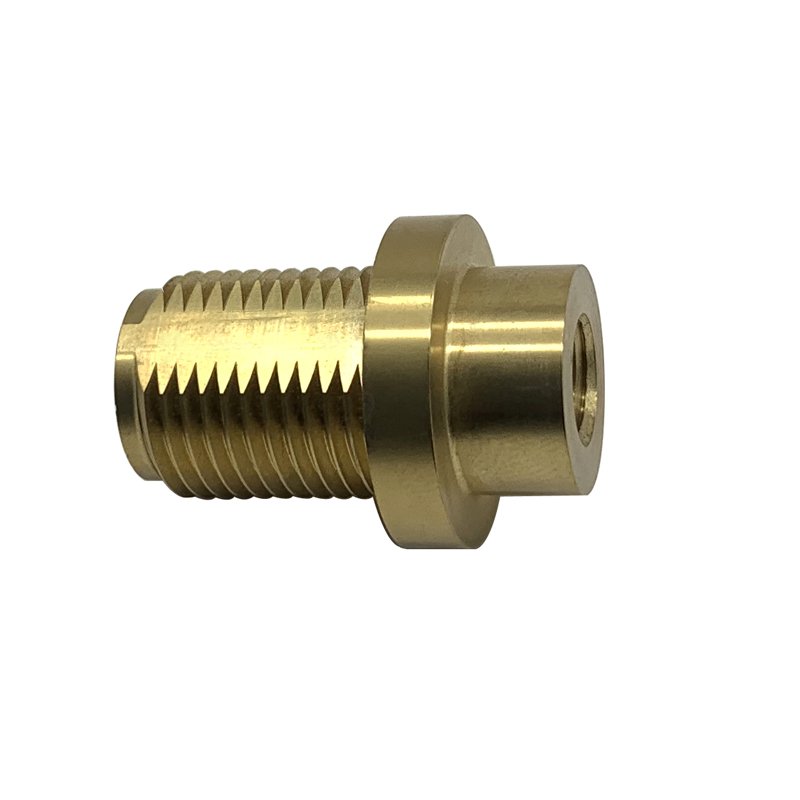

CNC Machined Brass Flange Fitting - view 2

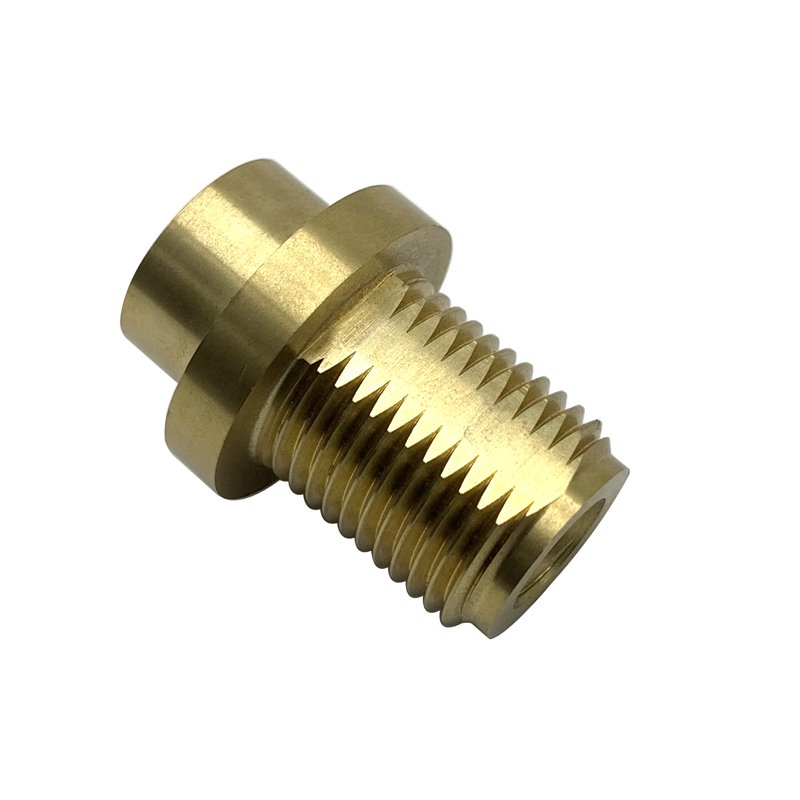

CNC Machined Brass Flange Fitting - view 3

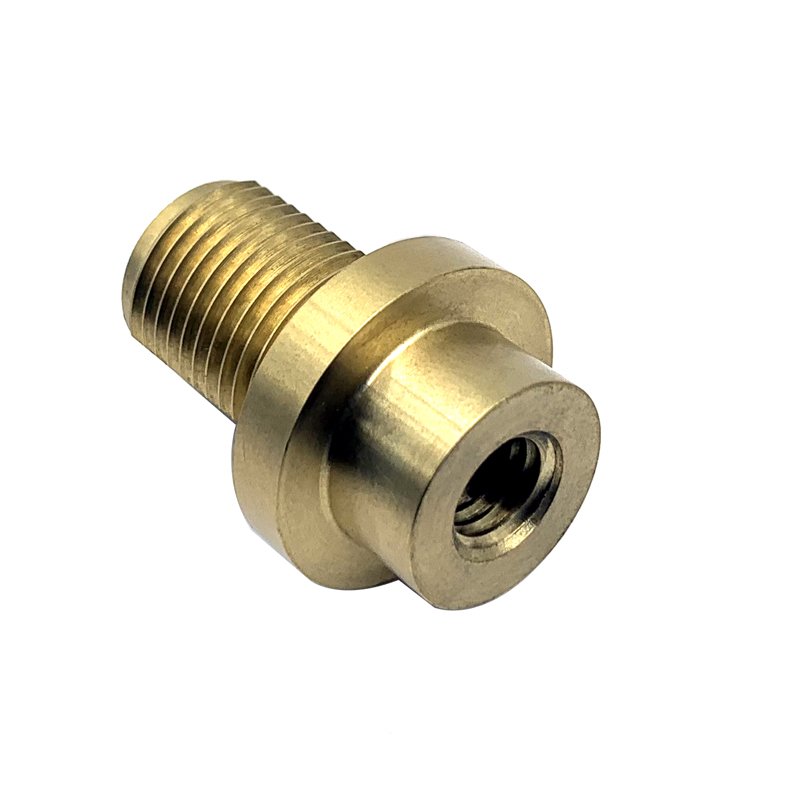

CNC Machined Brass Flange Fitting - view 4

Key Features

Precision turned from free-cutting brass (C36000 / H59 / H62)
Accurate external thread with gauge-tested fit
Integrated flange provides reliable sealing and locating
Hex body allows standard wrench installation
Available in nickel plating, chrome plating or natural finish

Technical Specifications

Process	CNC turning + CNC milling
Material	Brass H59 / H62 / C36000 (or as required)
Thread accuracy	6g, NPT / BSP / Metric optional, gauge-checked
Tolerance	±0.02 mm
Surface finish	Nickel plating, chrome plating, natural brass
Lead time	7-15 days
MOQ	1 piece accepted for prototype
Drawing format	STP / STEP / IGES / PDF / DXF
Quality control	100% thread and dimensional inspection

Applications

Plumbing and water fittings
Pneumatic and hydraulic systems
Gas and oil connectors
Instrumentation and sensors
Custom OEM brass fittings

Why Choose MDM

One-stop service from drawing review, tooling to mass production
ISO 9001 certified manufacturing with full inspection reports
Competitive pricing with on-time delivery worldwide
Free DFM feedback for cost and quality optimization
Fast response within 24 hours for all inquiries

Request a quote for your custom parts — send us your drawings, we reply within 24 hours.
