CNC Machined Slotted Cylinder Sleeve

Product Presentation

This cylindrical sleeve is CNC turned from aluminum alloy with transverse slots and internal threaded features. Precision turning and drilling in one setup deliver excellent concentricity between the outer diameter, bore and transverse features, ideal for guide, support and connection functions.

CNC Machined Slotted Cylinder Sleeve - view 1

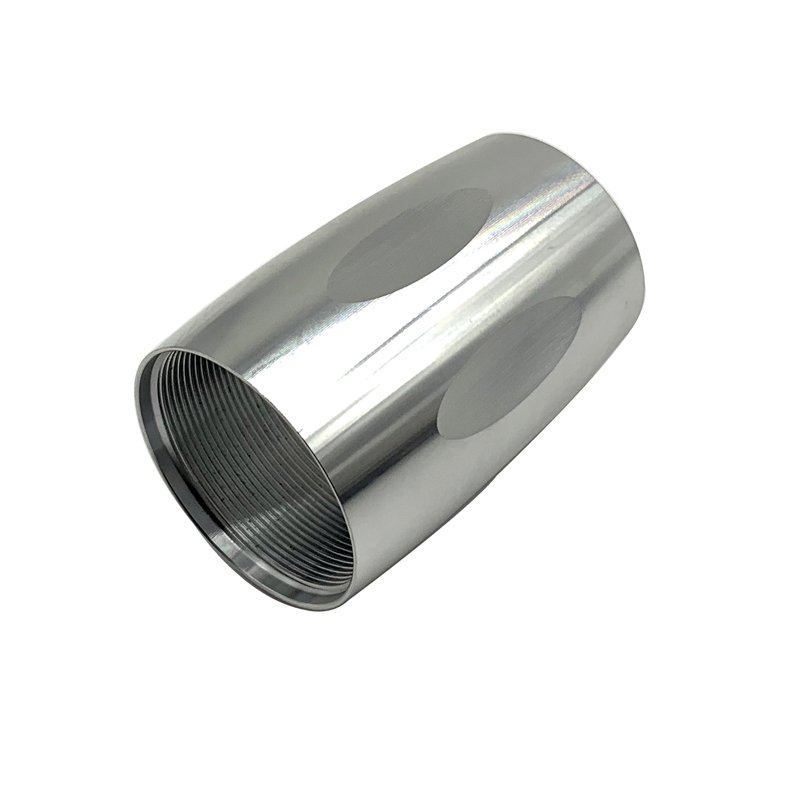

CNC Machined Slotted Cylinder Sleeve - view 2

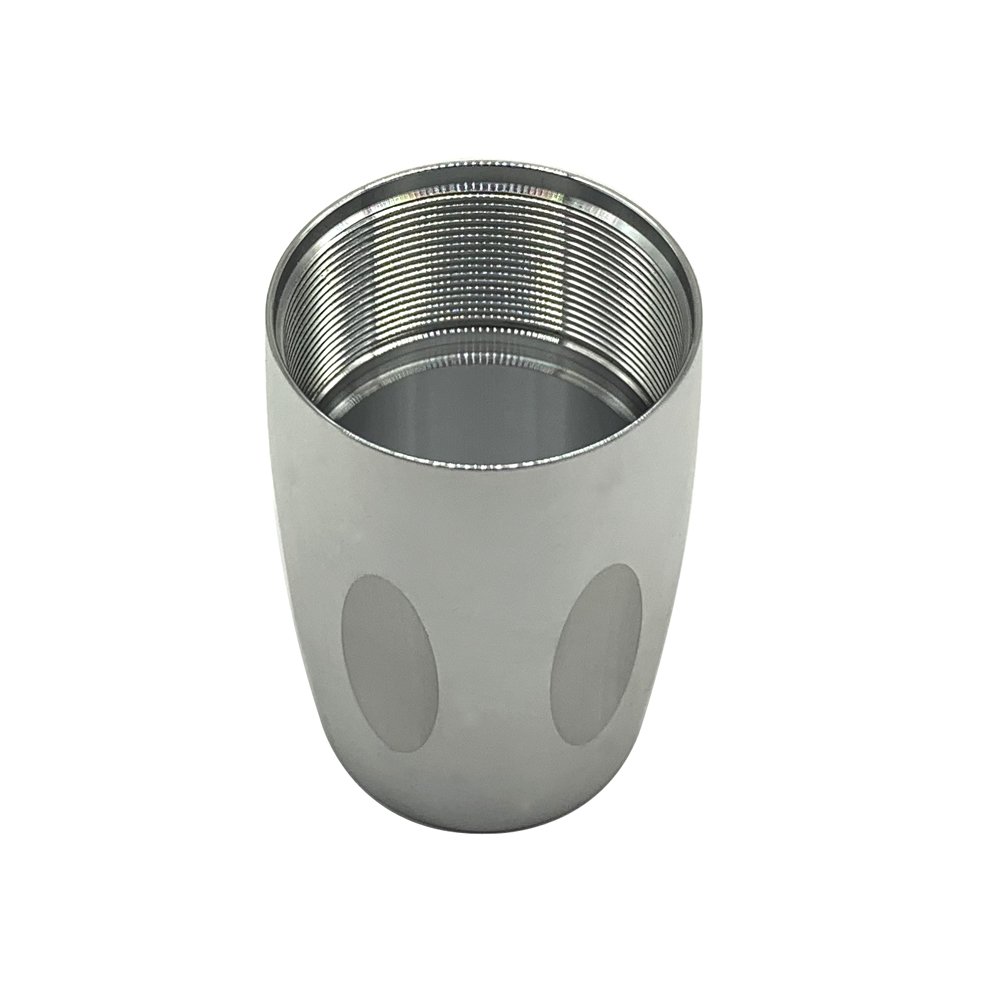

CNC Machined Slotted Cylinder Sleeve - view 3

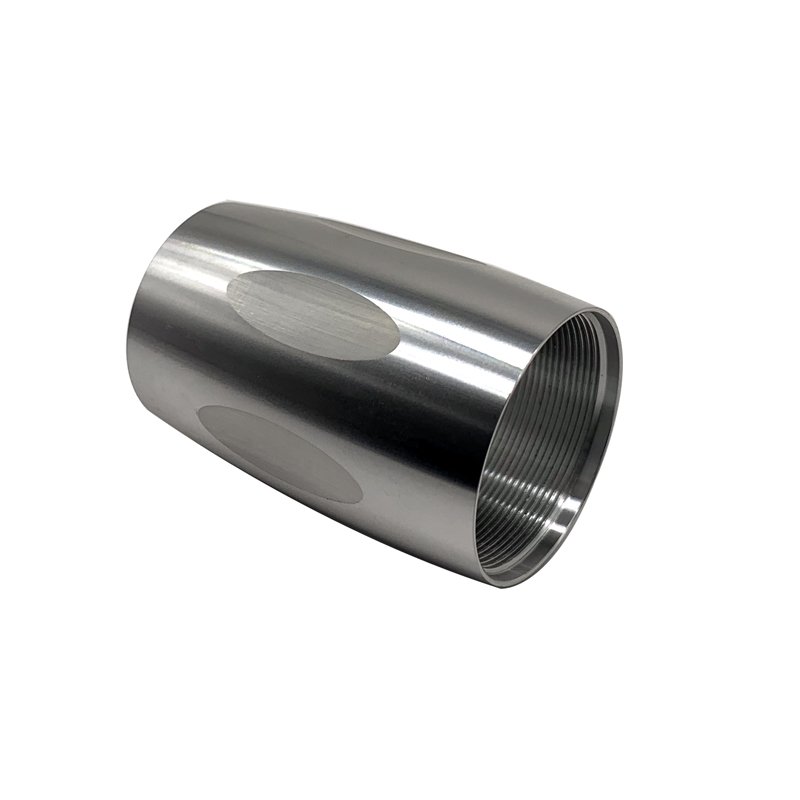

CNC Machined Slotted Cylinder Sleeve - view 4

Key Features

High concentricity between OD, ID and transverse holes
Transverse slots and holes accurately drilled and reamed
Internal threads machined to gauge tolerance
Smooth machined surfaces with optional anodizing
Suitable for aluminum, stainless steel, brass and plastic

Technical Specifications

Process	CNC turning + drilling / milling
Material	Aluminum 6061 / 7075, stainless steel, brass
Concentricity	≤ 0.03 mm
Tolerance	±0.02 mm
Surface finish	Clear / color anodizing, passivation, or as required
Lead time	7-15 days
MOQ	1 piece accepted for prototype
Drawing format	STP / STEP / IGES / PDF / DXF
Quality control	100% inspection, CMM report available

Applications

Pneumatic and hydraulic cylinders
Guide bushings and spacers
Mechanical transmission components
Automotive and instrumentation
Custom OEM sleeves and bushings

Why Choose MDM

One-stop service from drawing review, tooling to mass production
ISO 9001 certified manufacturing with full inspection reports
Competitive pricing with on-time delivery worldwide
Free DFM feedback for cost and quality optimization
Fast response within 24 hours for all inquiries

Request a quote for your custom parts — send us your drawings, we reply within 24 hours.
