MIM Sintered Claw-Shaped Actuator Component

Product Presentation

This claw-shaped actuator component is produced by metal injection molding, allowing the multi-lobe claw geometry, central square bore and locating features to be formed in one near-net-shape sintered part. MIM delivers the complex geometry at a fraction of the cost of multi-step machining, with the strength and hardness of sintered stainless steel.

MIM Sintered Claw-Shaped Actuator Component - view 1

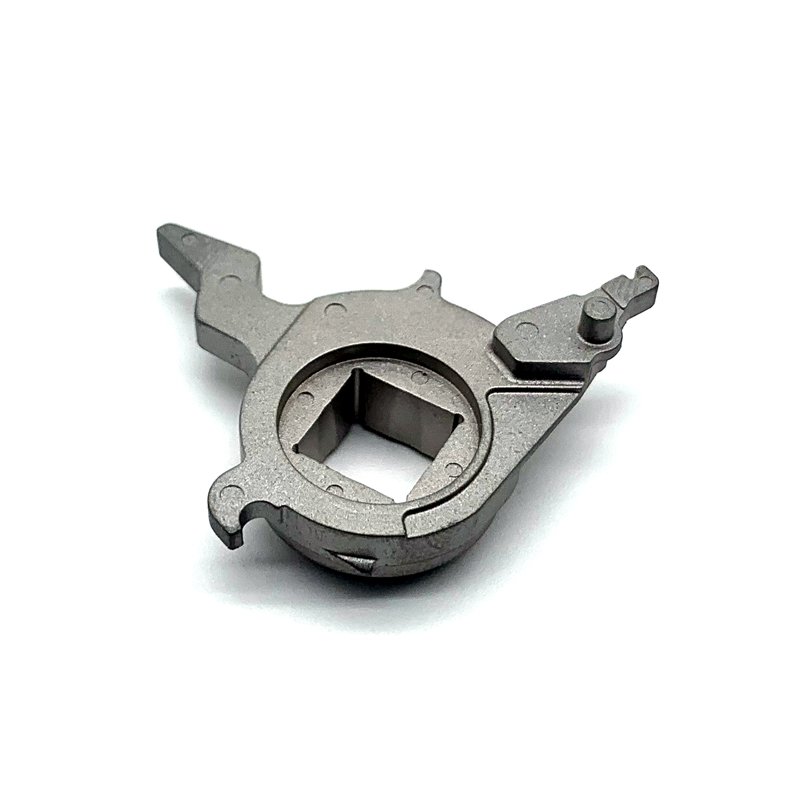

MIM Sintered Claw-Shaped Actuator Component - view 2

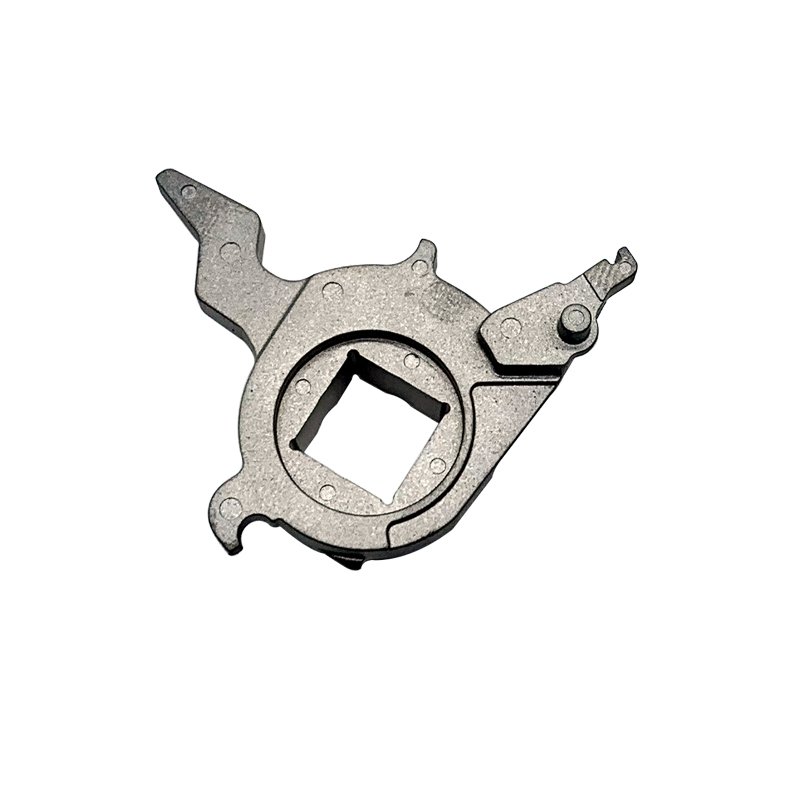

MIM Sintered Claw-Shaped Actuator Component - view 3

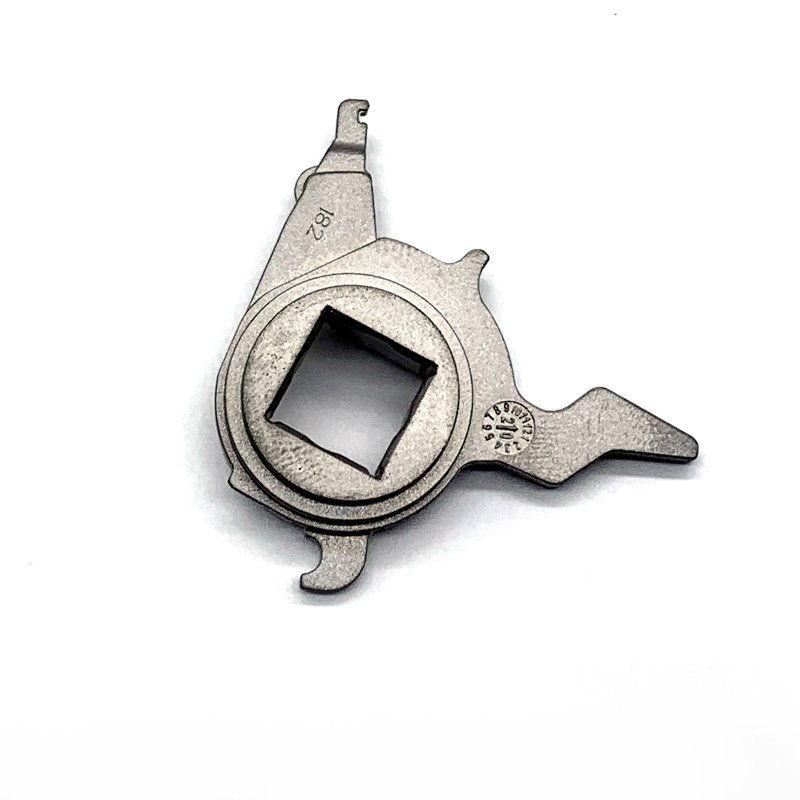

MIM Sintered Claw-Shaped Actuator Component - view 4

Key Features

Complex multi-lobe claw geometry formed in one MIM process
Central square bore and locating features with tight repeatability
High sintered density (95-98%) with excellent strength
Materials: 17-4PH, 316L, 430 stainless steel, alloy steel
Cost-effective alternative to CNC-machined complex shapes at volume

Technical Specifications

Process	Metal injection molding (MIM) + sintering
Material	Stainless steel 17-4PH / 316L / 430 (or as required)
Density	95-98% of theoretical density
Tolerance	±0.3% of dimension (typical)
Surface finish	As-sintered, shot blasting, passivation, plating
Max size	Up to 50 mm typical, larger on request
Volume	Suitable from 5,000 pcs/year and above
Lead time	15-20 days after tooling approval
Quality control	100% dimensional inspection, material cert available

Applications

Locking and clamping mechanisms
Automotive and mechanical actuators
Power tools and hand tools
Consumer electronics mechanisms
Industrial equipment components

Why Choose MDM

One-stop service from drawing review, tooling to mass production
ISO 9001 certified manufacturing with full inspection reports
Competitive pricing with on-time delivery worldwide
Free DFM feedback for cost and quality optimization
Fast response within 24 hours for all inquiries

Request a quote for your custom parts — send us your drawings, we reply within 24 hours.
