MIM Sintered Multi-Hole Flange Base

Product Presentation

This multi-hole flange base is produced by metal injection molding, forming the bolt holes, raised bosses and mounting interface in a near-net-shape sintered part. Sintered stainless steel provides the strength and flatness required for sensor and equipment mounting.

MIM Sintered Multi-Hole Flange Base - view 1

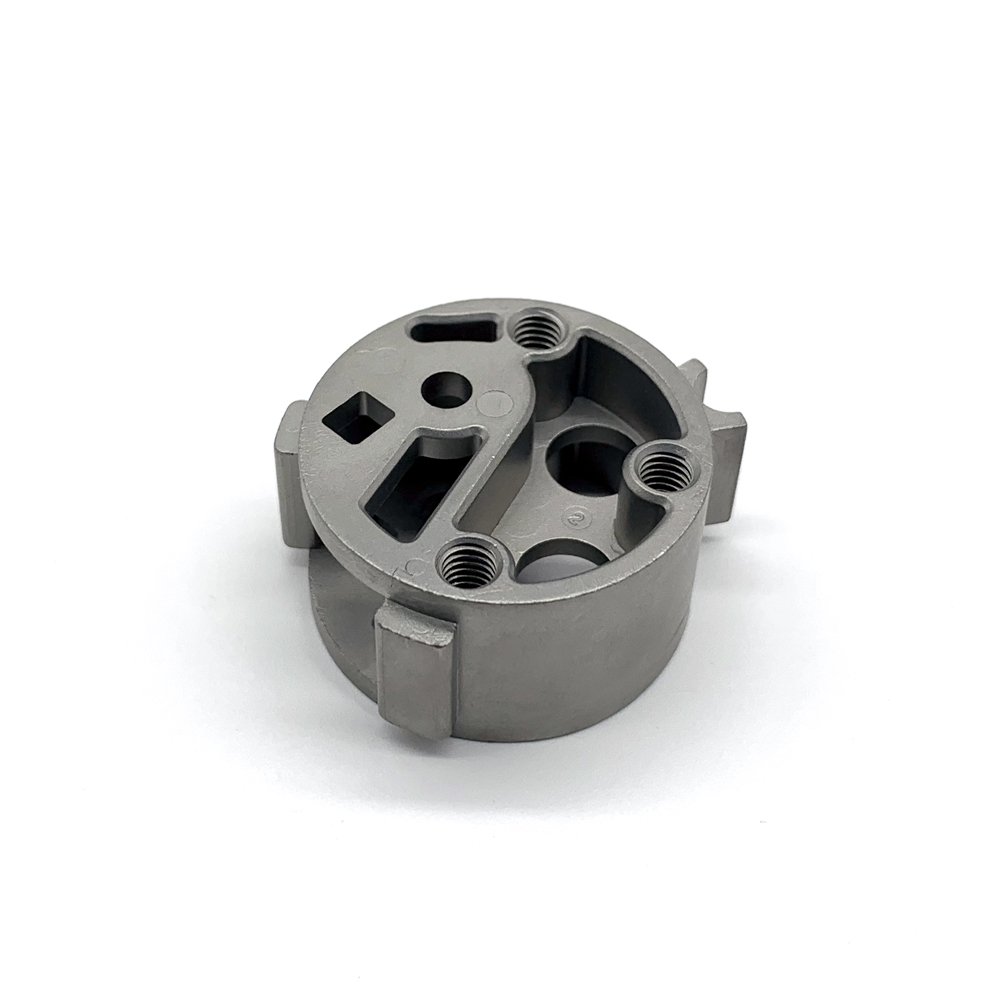

MIM Sintered Multi-Hole Flange Base - view 2

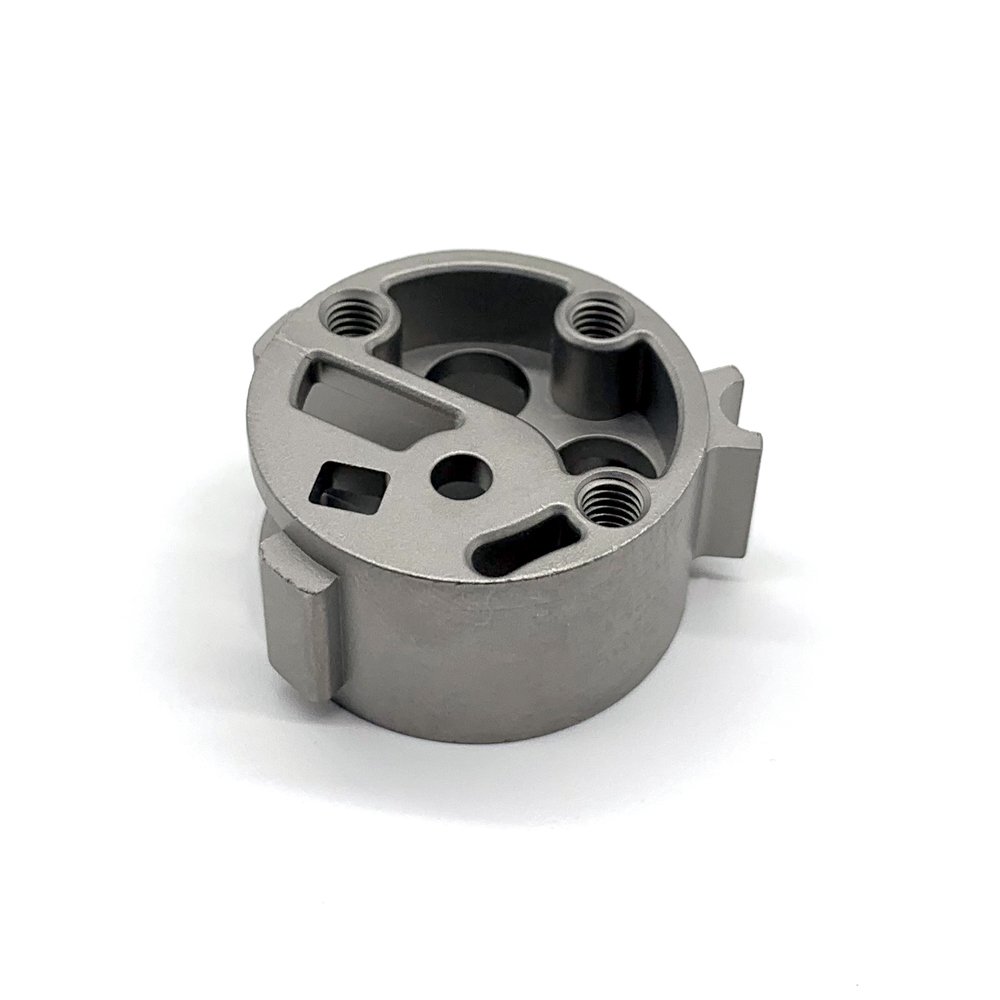

MIM Sintered Multi-Hole Flange Base - view 3

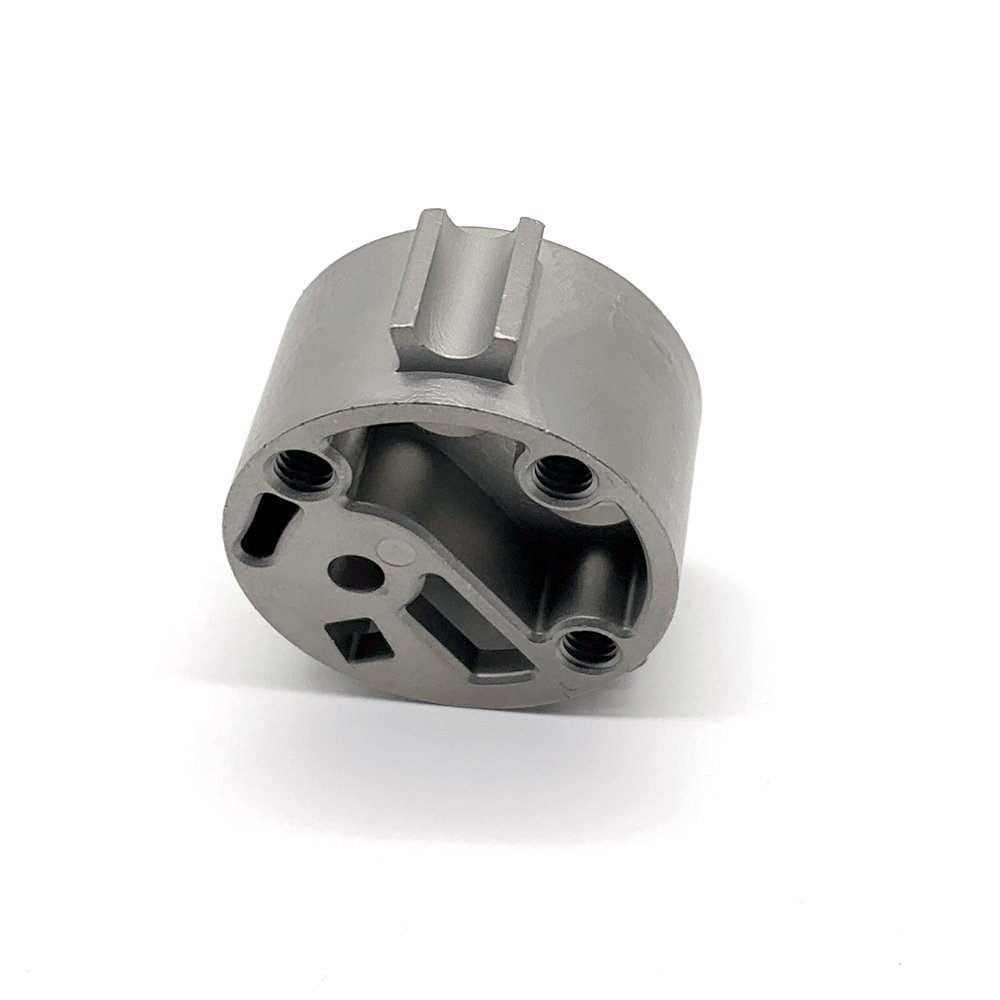

MIM Sintered Multi-Hole Flange Base - view 4

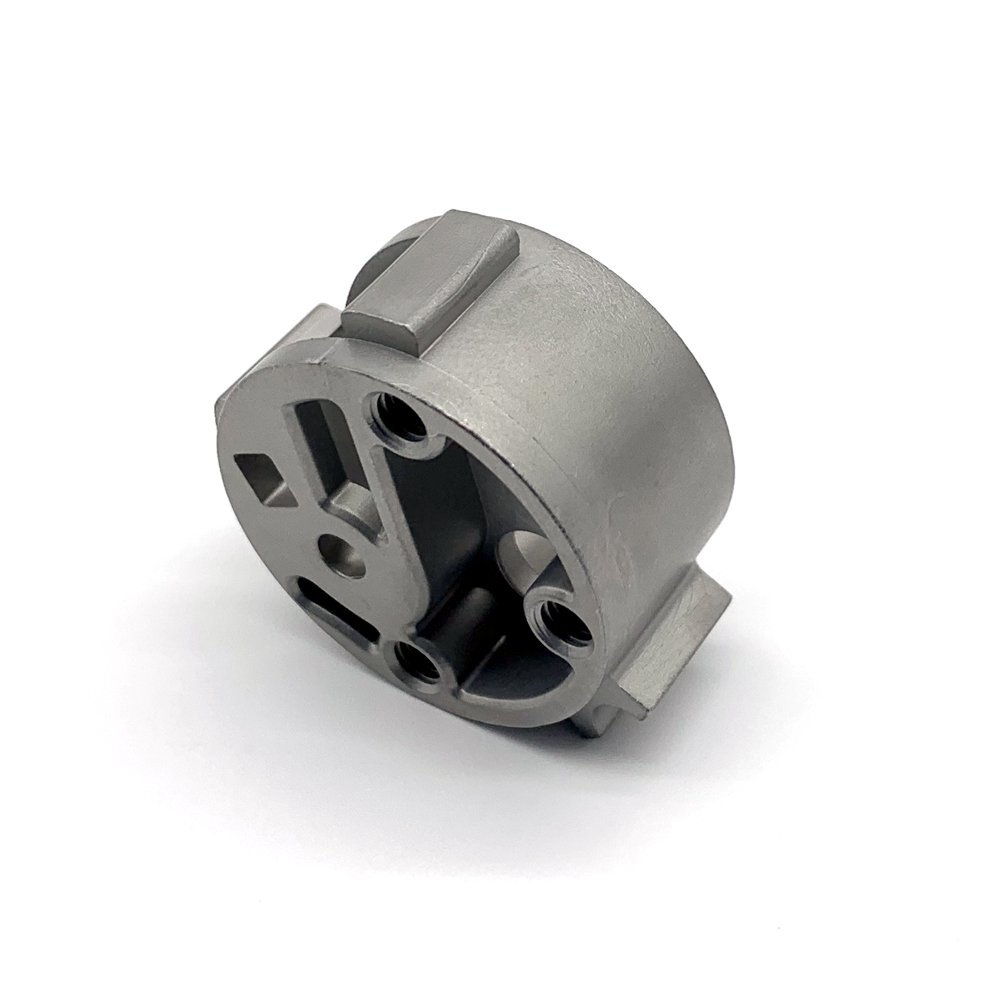

MIM Sintered Multi-Hole Flange Base - view 5

Key Features

Bolt holes, raised bosses and mounting interface formed in one MIM process
High strength and flatness from sintered stainless steel
Excellent dimensional repeatability for sensor mounting
Complex geometry that would be costly to machine
Customizable: hole pattern, boss height and material

Technical Specifications

Process	Metal injection molding (MIM) + sintering
Material	Stainless steel 304 / 316L / 17-4PH
Density	96-98% of theoretical density
Tolerance	±0.3% of dimension (typical)
Surface finish	Shot blasting, passivation, machining on critical faces
Volume	Suitable from 5,000 pcs/year and above
Lead time	15-20 days after tooling approval
Quality control	100% dimensional and flatness inspection

Applications

Sensor and transmitter mounting flanges
Equipment mounting bases
Valve and pump mounting brackets
Medical device mounting interfaces
Custom MIM flange bases

Why Choose MDM

One-stop service from drawing review, tooling to mass production
ISO 9001 certified manufacturing with full inspection reports
Competitive pricing with on-time delivery worldwide
Free DFM feedback for cost and quality optimization
Fast response within 24 hours for all inquiries

Request a quote for your custom parts — send us your drawings, we reply within 24 hours.
