MIM Sintered Laptop Hinge Leaf

Product Presentation

This laptop hinge leaf is manufactured by metal injection molding, combining multi-step bends, toothed locking features and mounting holes in a single sintered stainless steel part. MIM enables the thin, complex hinge geometry required by consumer electronics with excellent fatigue resistance and consistent torque performance over many cycles.

MIM Sintered Laptop Hinge Leaf - view 1

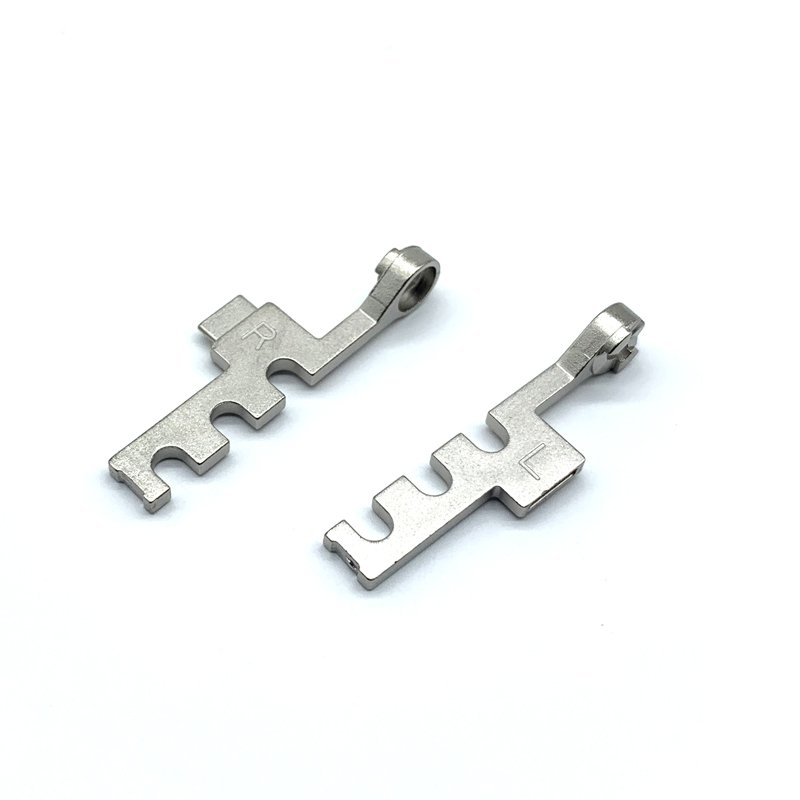

MIM Sintered Laptop Hinge Leaf - view 2

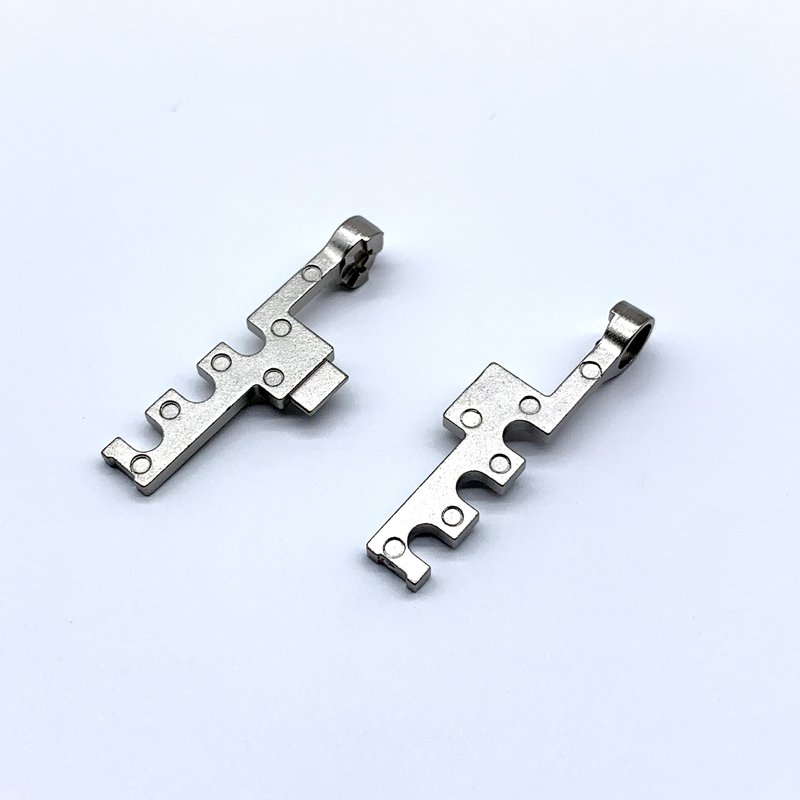

MIM Sintered Laptop Hinge Leaf - view 3

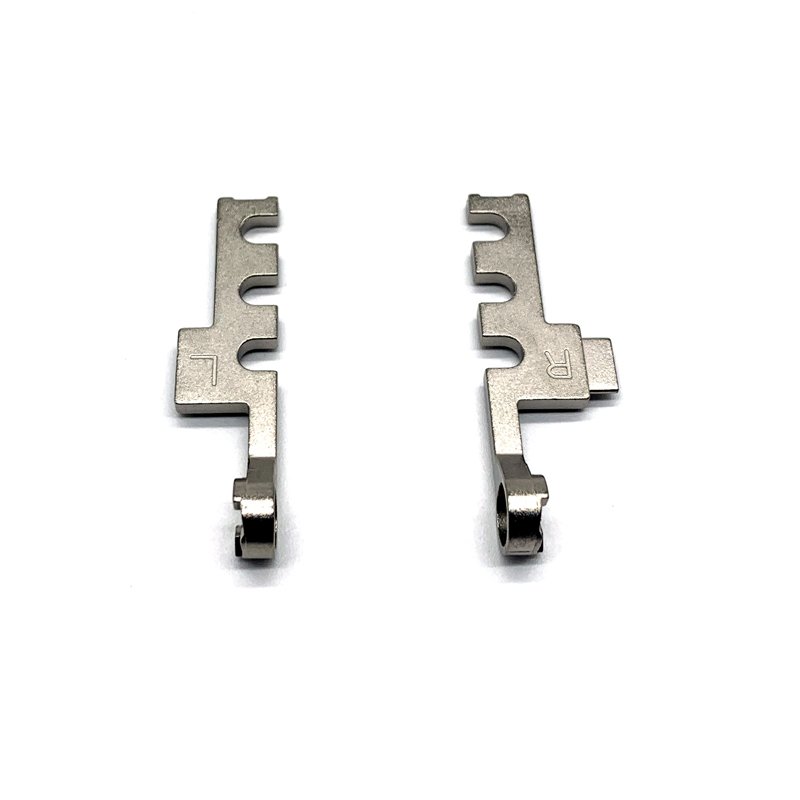

MIM Sintered Laptop Hinge Leaf - view 4

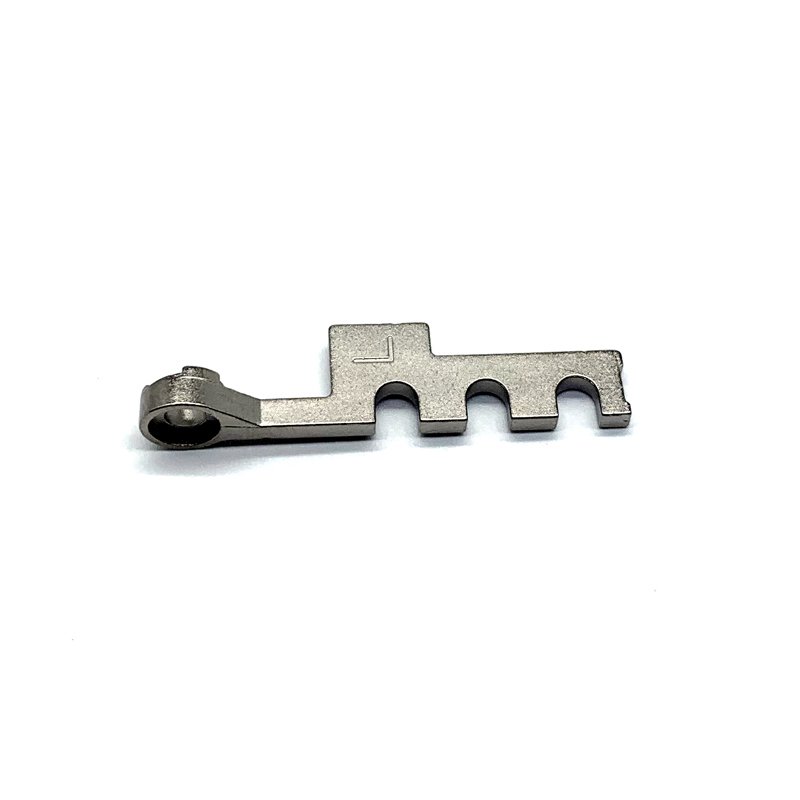

MIM Sintered Laptop Hinge Leaf - view 5

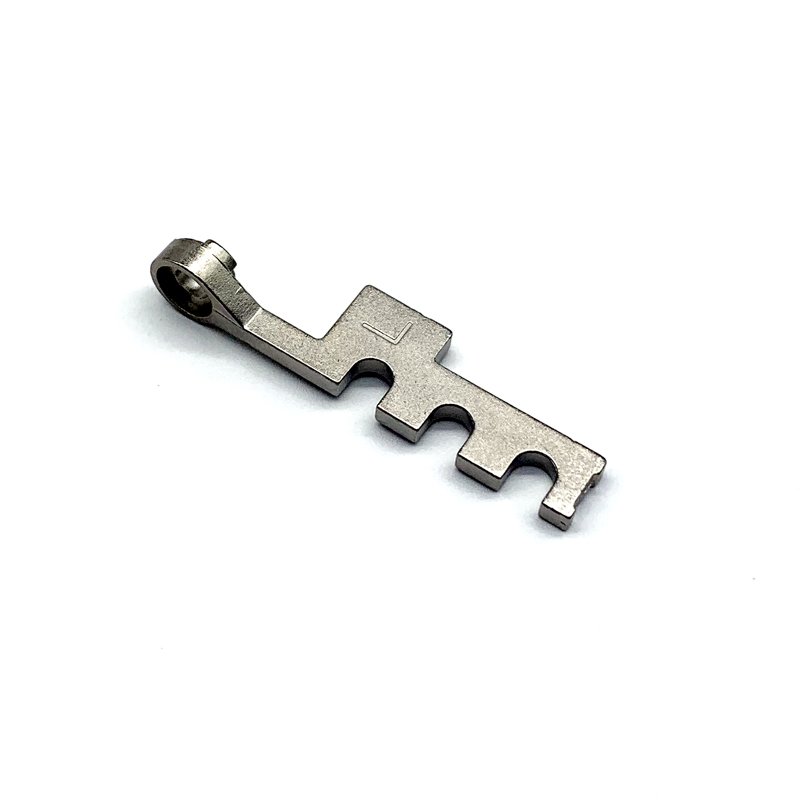

MIM Sintered Laptop Hinge Leaf - view 6

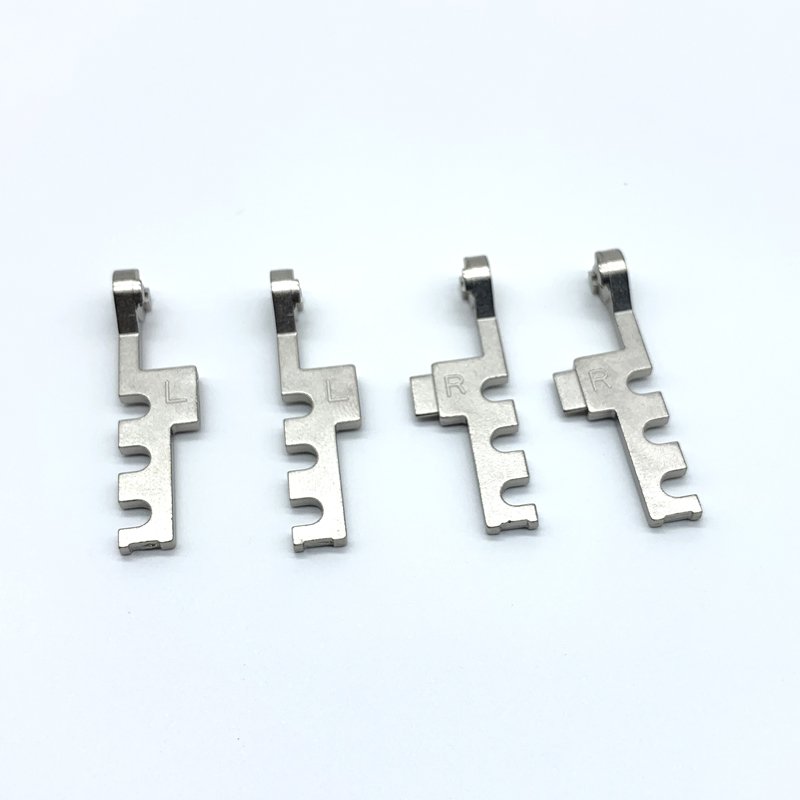

MIM Sintered Laptop Hinge Leaf - view 7

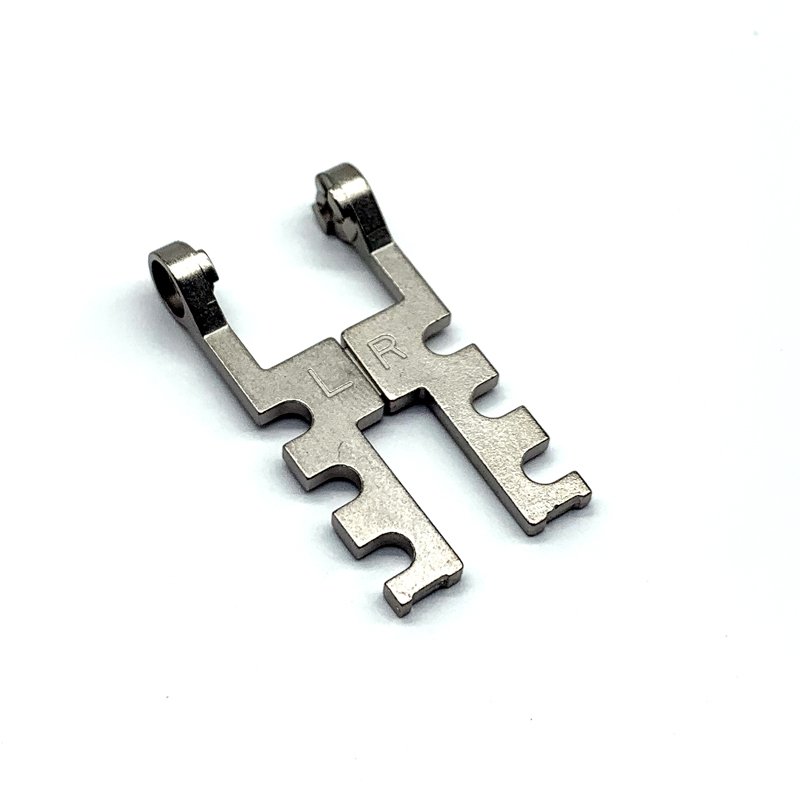

MIM Sintered Laptop Hinge Leaf - view 8

Key Features

Multi-step bends and toothed features formed in one MIM process
Thin, complex geometry that is difficult to machine
High fatigue resistance for repeated open/close cycles
Consistent torque performance part to part
Materials: 17-4PH, 316L, 430 stainless steel

Technical Specifications

Process	Metal injection molding (MIM) + sintering + heat treatment
Material	Stainless steel 17-4PH / 316L / 430
Hardness	HRC 28-42 after heat treatment
Density	96-98% of theoretical density
Tolerance	±0.3% of dimension (typical)
Surface finish	Shot blasting, passivation, PVD, plating
Volume	Suitable from 5,000 pcs/year and above
Lead time	15-20 days after tooling approval
Quality control	Cycle test and 100% dimensional inspection

Applications

Laptop and tablet hinges
Foldable consumer electronics
Mobile device flip mechanisms
Wearable and portable devices
Custom MIM hinge and mechanism parts
