MIM Sintered Mechanical Wedge Bracket

Product Presentation

This mechanical wedge bracket is produced by metal injection molding, forming the angled wedge shape and mounting holes in a near-net-shape sintered part. Sintered alloy steel provides the high strength and precision required for positioning, clamping and mechanical support applications.

MIM Sintered Mechanical Wedge Bracket - view 1

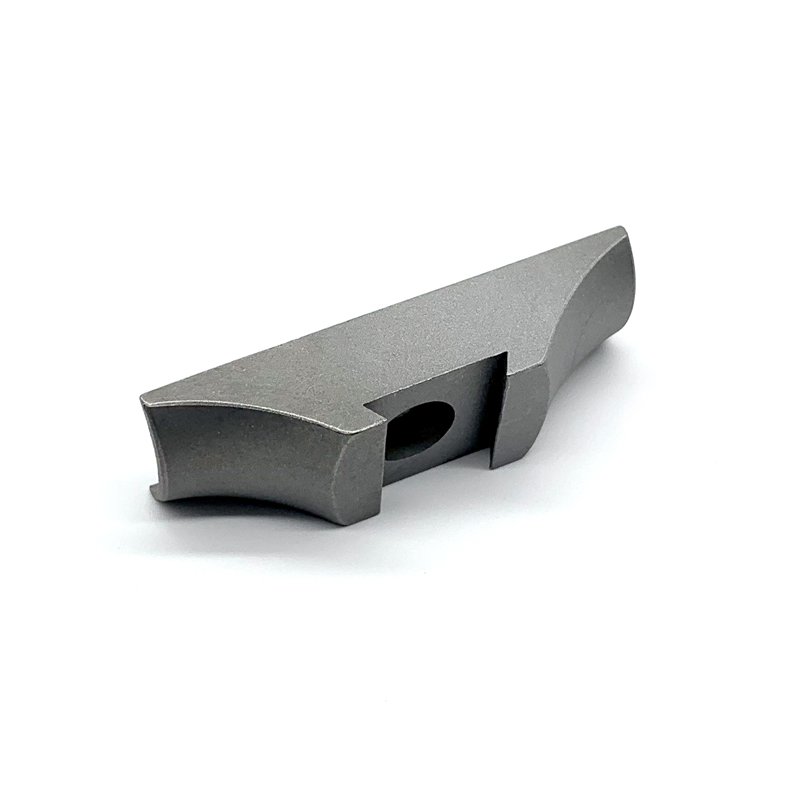

MIM Sintered Mechanical Wedge Bracket - view 2

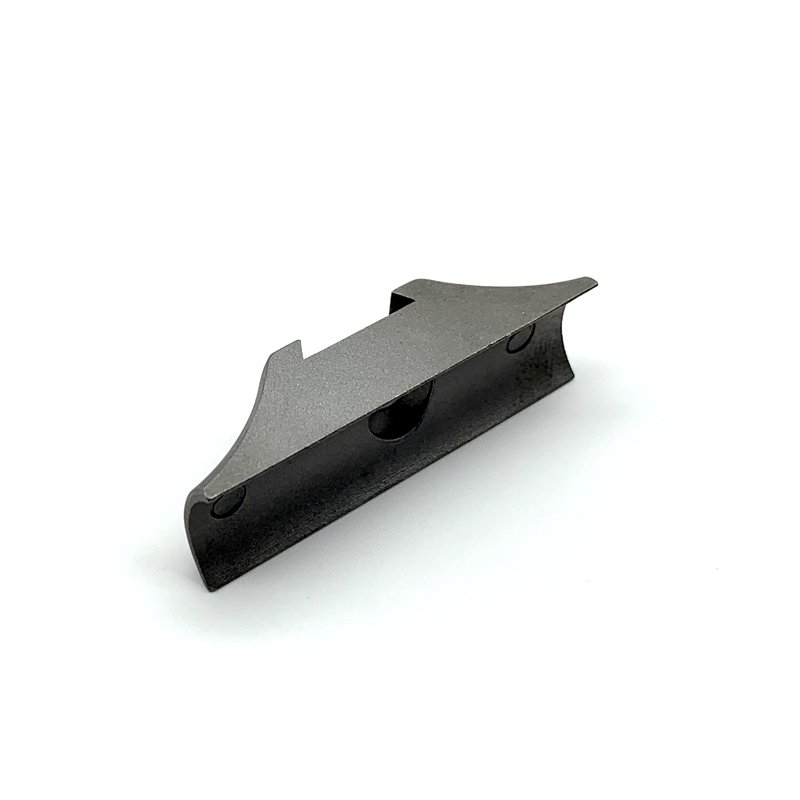

MIM Sintered Mechanical Wedge Bracket - view 3

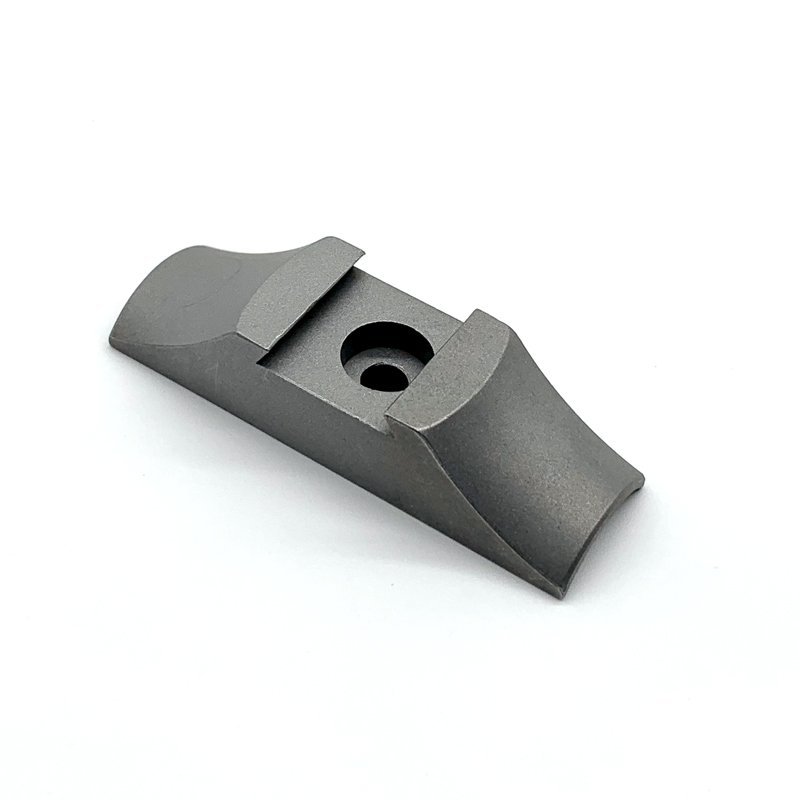

MIM Sintered Mechanical Wedge Bracket - view 4

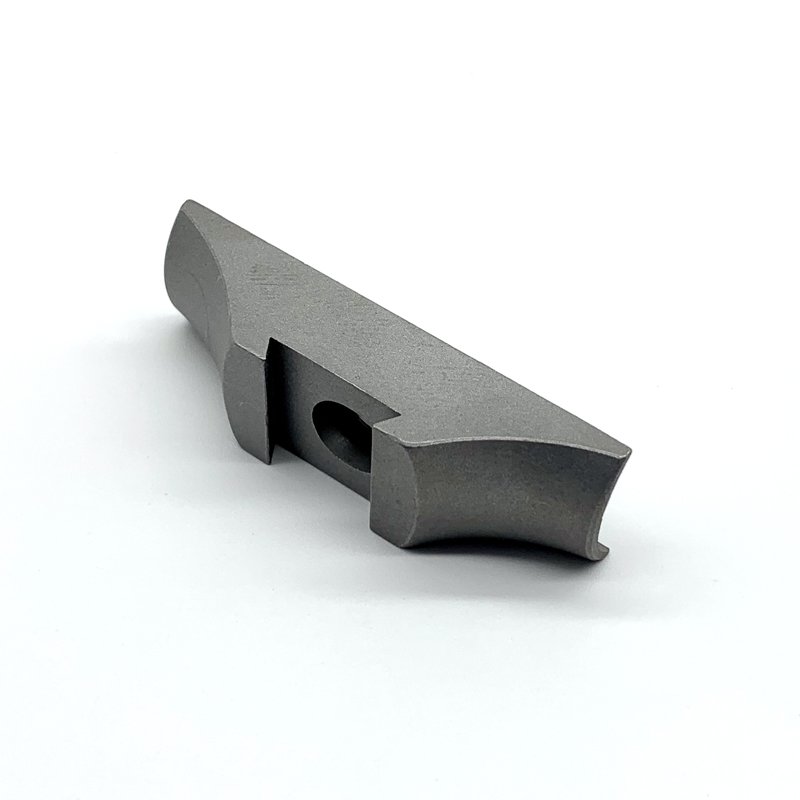

MIM Sintered Mechanical Wedge Bracket - view 5

Key Features

Angled wedge shape and mounting holes formed by MIM
High strength and dimensional stability from sintered alloy steel
Complex geometry that would be costly to machine
Excellent repeatability across high-volume production
Customizable: geometry, material and heat treatment

Technical Specifications

Process	Metal injection molding (MIM) + sintering + heat treatment
Material	Alloy steel 4600 series, stainless steel
Hardness	HRC 25-40 after heat treatment
Density	96-98% of theoretical density
Tolerance	±0.3% of dimension (typical)
Surface finish	Shot blasting, black oxide, oiled
Volume	Suitable from 5,000 pcs/year and above
Lead time	15-20 days after tooling approval
Quality control	100% dimensional inspection
Application	Positioning, clamping, mechanical support

Applications

Machine tool fixtures and jigs
Positioning and clamping mechanisms
Industrial equipment supports
Automated machinery components
Custom MIM mechanical brackets

Why Choose MDM

One-stop service from drawing review, tooling to mass production
ISO 9001 certified manufacturing with full inspection reports
Competitive pricing with on-time delivery worldwide
Free DFM feedback for cost and quality optimization
Fast response within 24 hours for all inquiries

Request a quote for your custom parts — send us your drawings, we reply within 24 hours.
