MIM Sintered Water Purifier Threaded Fitting

Product Presentation

This cross-shaped threaded fitting for water purification systems is manufactured by metal injection molding, combining multiple threaded ports, a central through-bore and mounting features in one sintered part. Sintered 316L stainless steel offers excellent corrosion resistance and pressure performance for potable water applications.

MIM Sintered Water Purifier Threaded Fitting - view 1

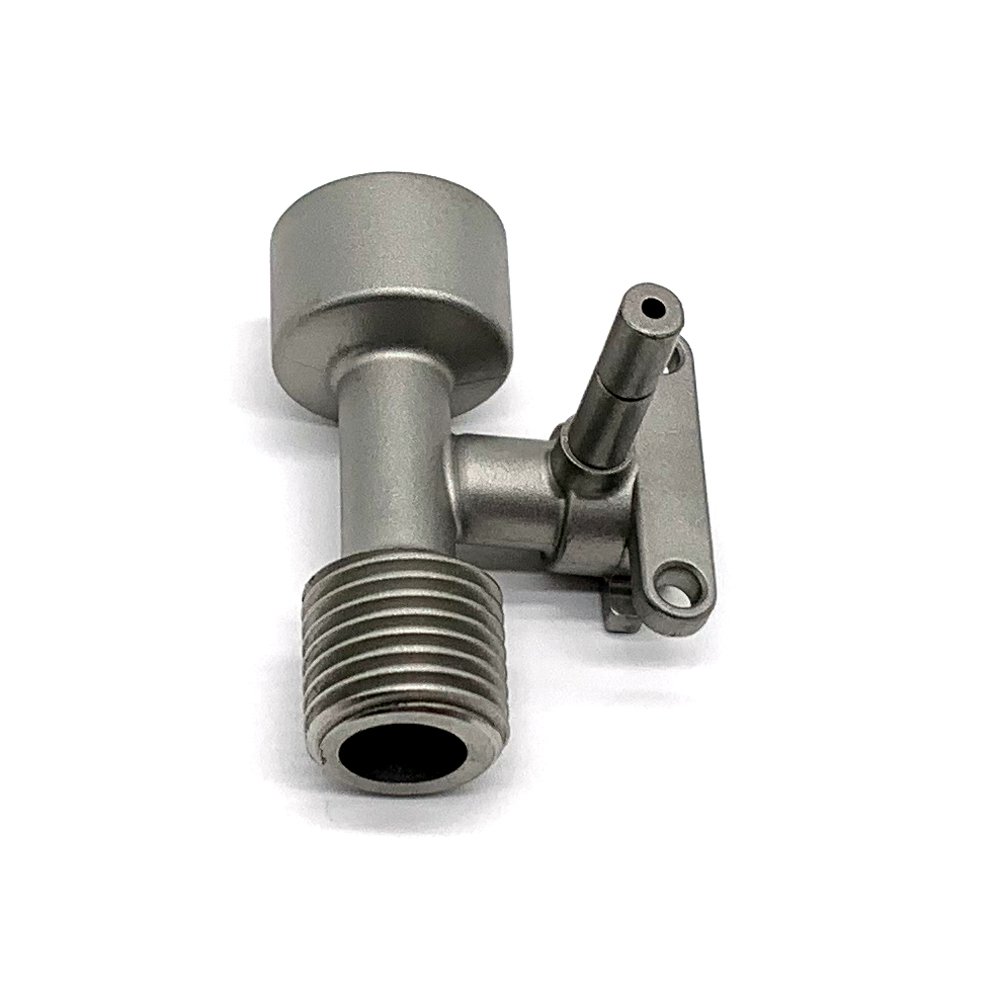

MIM Sintered Water Purifier Threaded Fitting - view 2

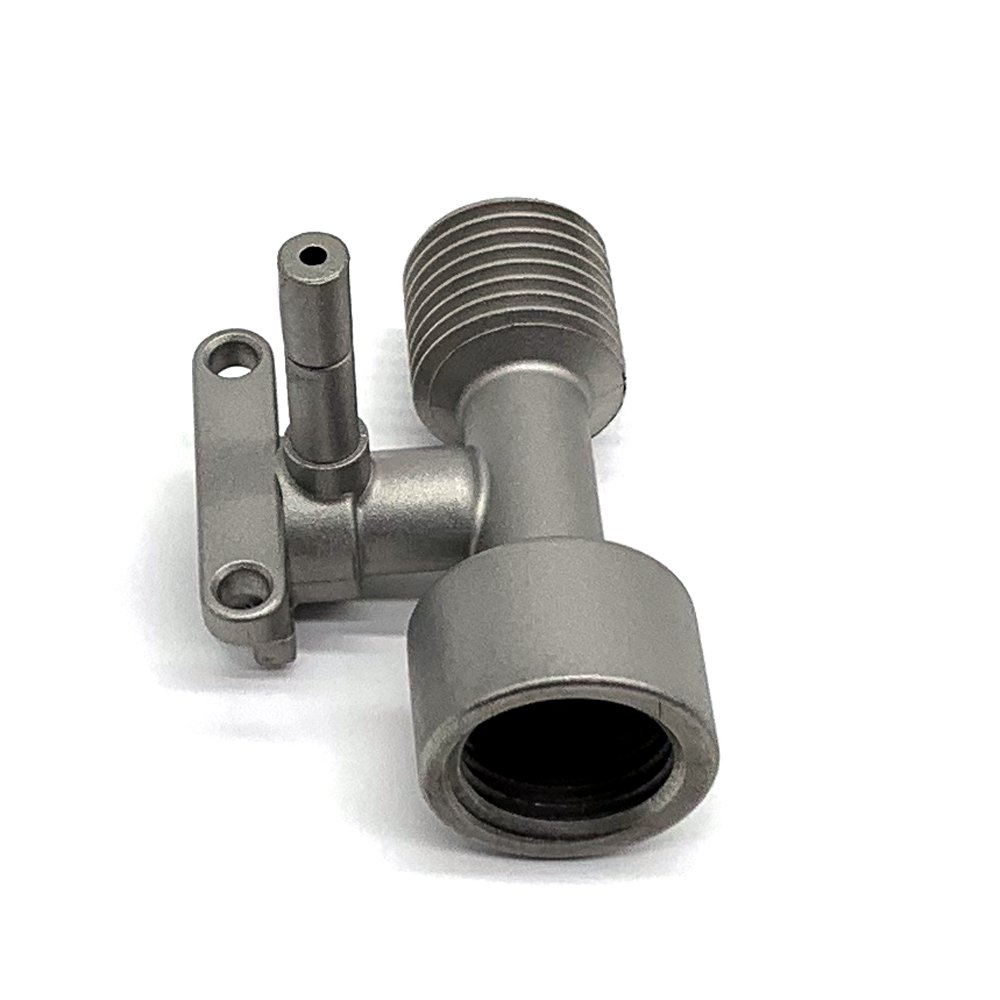

MIM Sintered Water Purifier Threaded Fitting - view 3

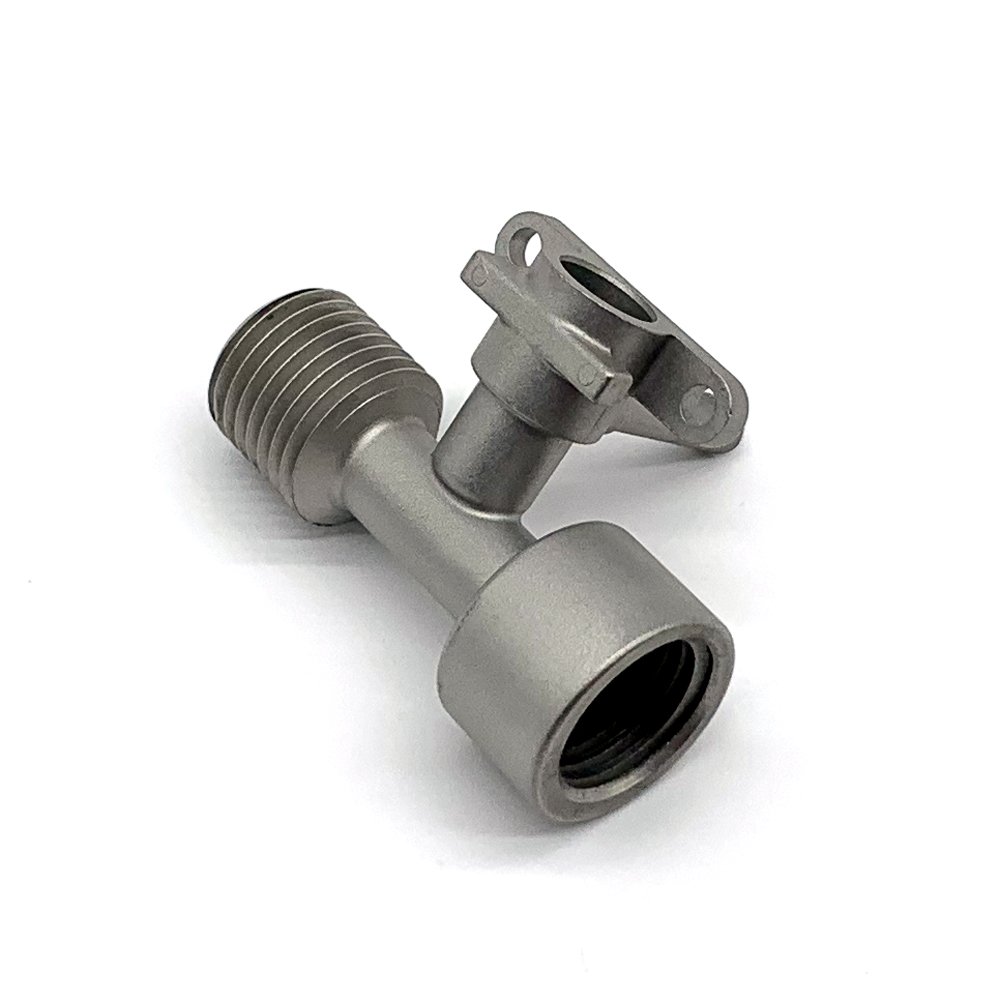

MIM Sintered Water Purifier Threaded Fitting - view 4

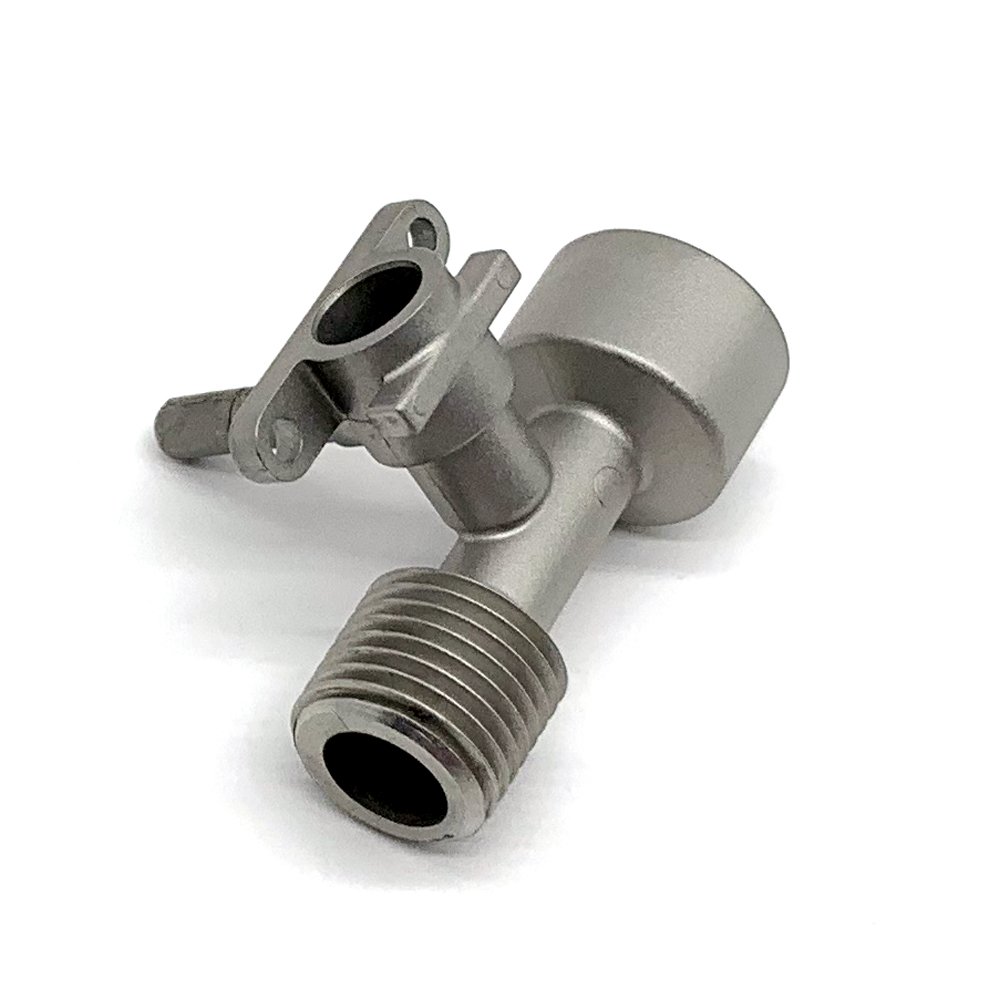

MIM Sintered Water Purifier Threaded Fitting - view 5

Key Features

Cross-body geometry with multiple threaded ports formed in one MIM process
Leak-proof internal bore with smooth flow passages
316L stainless steel for excellent corrosion resistance in water
Threads can be formed near-net-shape or secondary machined
Consistent dimensions across high-volume production

Technical Specifications

Process	Metal injection molding (MIM) + sintering
Material	Stainless steel 316L (potable water approved)
Density	96-98% of theoretical density
Tolerance	±0.3% of dimension (typical)
Thread option	Near-net-shape or secondary machining
Surface finish	Passivation, electropolishing, as-sintered
Volume	Suitable from 5,000 pcs/year and above
Lead time	15-20 days after tooling approval
Quality control	Pressure test and 100% dimensional inspection

Applications

Water purifiers and RO systems
Plumbing and water treatment fittings
Drinking water dispensers
Beverage and food equipment
Custom MIM fluid fittings
